Recently Added CNC Machines

View All
Daewoo-Puma-200MSC-50101-00Daewoo-Puma-200MSC-50101-01
New Arrivals
50101

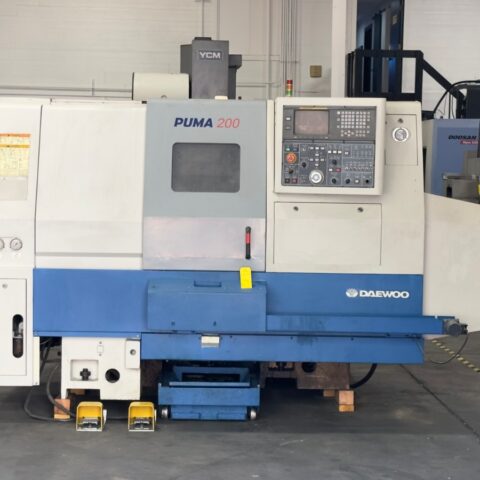

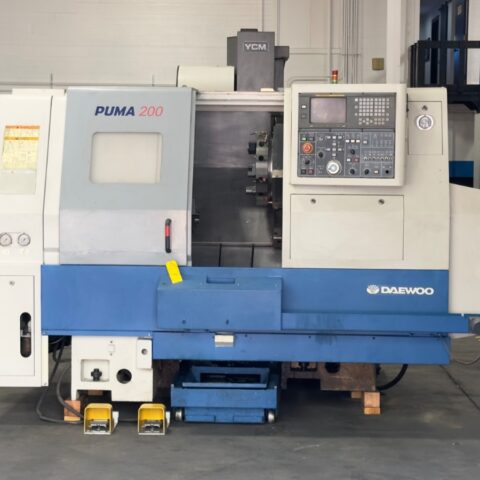

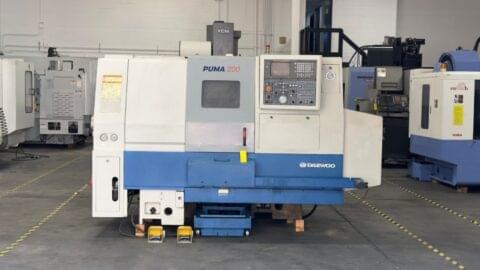

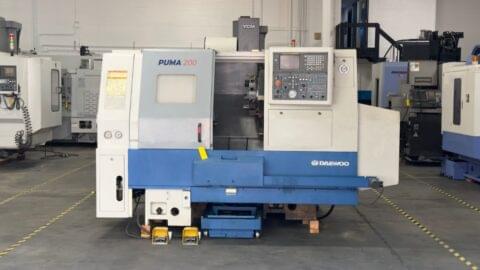

Daewoo Puma 200MSC CNC Turn Mill Center

WhatsApp Me
Array
(
    [features:] => Array
        (
            [0] => Fanuc 18-T Series CNC Control
            [1] => 8″ 3-Jaw Hydraulic Chuck
            [2] => 12 Station Live Tool Turret
            [3] => Sub Spindle
            [4] => RS-232 Port
            [5] => Coolant System
            [6] => Chip Conveyor
            [7] => Automatic Lubrication System
            [8] => Foot Switches
        )

    [specifications:] => Array
        (
            [0] => Capacity:
            [1] => Max Turning Diameter: 13.4″
            [2] => Max Turning Length: 17″
            [3] => Max Bar Capacity: 2.5″
            [4] => Swing Over Cross Slide: 13.0″
            [5] => Swing Over Bed: 20.1″
            [6] => Distance Between Spindles: 18″
        )

    [travel:] => Array
        (
            [0] => X Axis Travel: 8.7″
            [1] => Z Axis Travel: 17.3″
            [2] => B Axis Travel: 16.9″
            [3] => C Axis: 0.001°
            [4] => Rapid Traverse X Axis: 2007 cm/min
            [5] => Rapid Traverse Z Axis: 2400 cm/min
        )

    [spindle:] => Array
        (
            [0] => Spindle Nose: A2-6
            [1] => Spindle Bore: 2.99″
            [2] => Spindle Speed: 45-4500 RPM
            [3] => Spindle Motor: 14.9 kW
        )

    [sub spindle:] => Array
        (
            [0] => Spindle Nose: A2-5
            [1] => Spindle Bore: ″
            [2] => Spindle Speed: 60-6000 RPM
            [3] => Spindle Motor: 5.6 kW
        )

    [turret:] => Array
        (
            [0] => Turret Capacity: 12 Live Stations
            [1] => Turret Index Time: 0.5 Second
            [2] => Live Tool Speed: 60 - 6000 RPM
            [3] => Live Tool Motor: 3.7 kW
        )

)
X Travel
Y Travel
Z Travel
Spindle
Tool Changer
Table

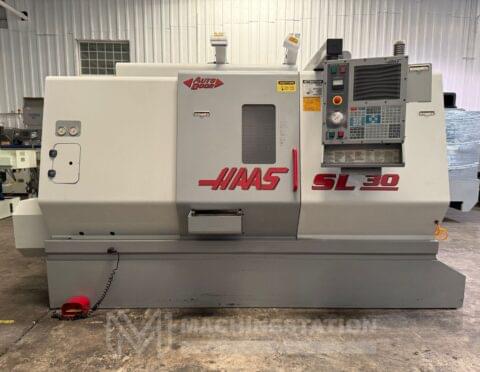

HAAS-SL-30T (1)HAAS-SL-30T (4)
New Arrivals
50106

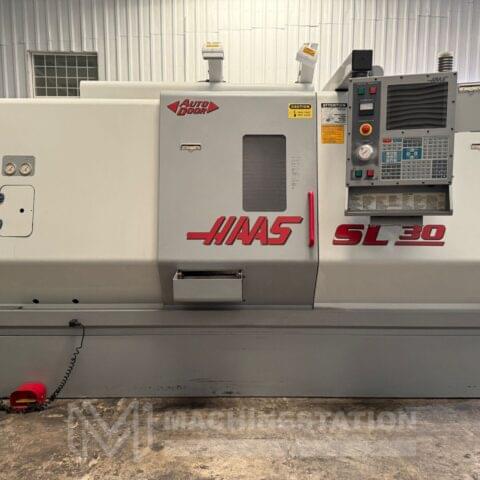

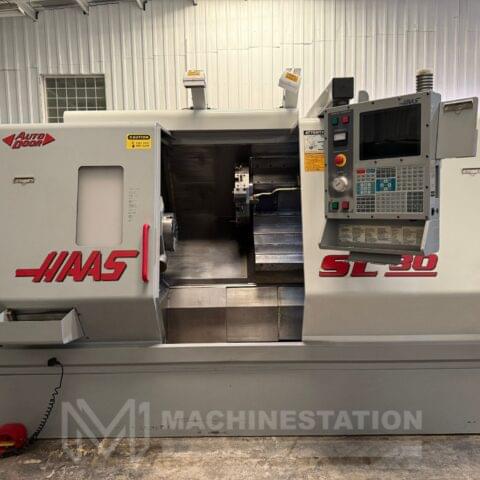

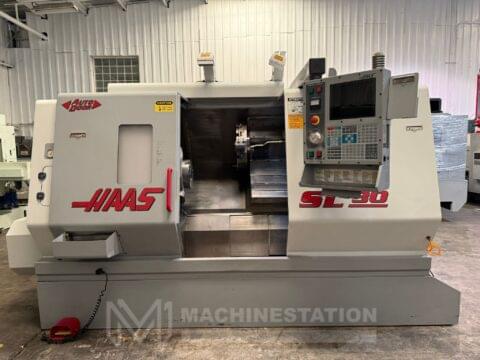

Haas SL-30T CNC Turning Center - 10" Chuck Tailstock Lathe

WhatsApp Me
Array
(
    [equipped with:] => Array
        (
            [0] => Haas CNC Control
            [1] => 254 mm 3-Jaw Kitagawa B-210  Chuck
            [2] => 22.4 kW Vector Dual Drive
            [3] => 12 Station Bolt-on-Turret
            [4] => Tool Presetter
            [5] => Auto Door
            [6] => A2-6 Spindle
            [7] => 88.9 mm Big Bore Spindle
            [8] => USB Port
            [9] => Tailstock
            [10] => Coolant System
            [11] => Automatic Lubrication system
            [12] => Foot Switch
            [13] => (2) Boring Tool Holders & (1) Part Catcher Tool Holder are Mounted on Turret (As shown in the Images)
        )

    [capacity:] => Array
        (
            [0] => Max Turning Diameter : 381 mm
            [1] => Max Swing Over Bed : 533.4 mm
            [2] => Max Turning Length: 863.6 mm
            [3] => Max Bar Capacity : 76.2 mm
        )

    [travels:] => Array
        (
            [0] => X Axis Travel : 238.76 mm
            [1] => Z Axis Travel : 825.5 mm
        )

    [feedrate:] => Array
        (
            [0] => Rapid Traverse X Axis: 1803 cm/min
            [1] => Rapid Traverse Z Axis: 1803 cm/min
        )

    [spindle:] => Array
        (
            [0] => Spindle Nose: A2-6
            [1] => Spindle Bore: 3.5″
            [2] => Spindle Speed: 3400 RPM
            [3] => Spindle Motor: 22.4 kW
        )

    [turret:] => Array
        (
            [0] => Turret Capacity: 12 Stations
            [1] => Turret Index Time: 1 Second
            [2] => Turret Type: Bolt-on-Turret
        )

    [tailstock:] => Array
        (
            [0] => Tailstock Taper: MT-4
            [1] => Tailstock Quill Dia.: 2.6″
            [2] => Tailstock Quill Travel: 3.1″
        )

    [general:] => Array
        (
            [0] => Air Required: 100 psi 4 scfm
            [1] => Power Source: AC 220v / 3-Phase / 60 Hz
            [2] => Machine Dimensions: 4318 mm x 2286 mm x 2489.2 mm High Approx.
            [3] => Machine Weight: 4989.5 kg Approx.
        )

)
X Travel
Y Travel
Z Travel
Spindle
Tool Changer
Table

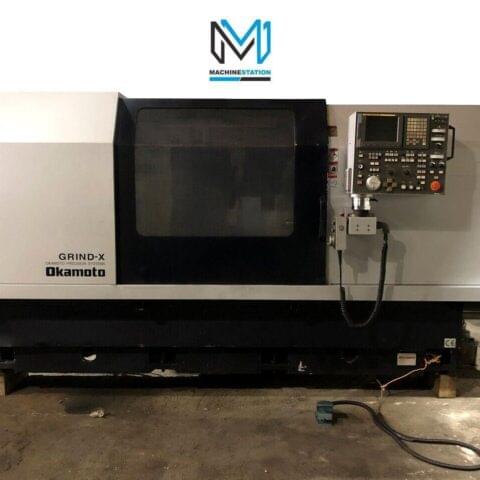

587dab0fe0d84d649f235cd521c8b8cc-968c0bf5a3ffd907ef412f1755b44b02f91141983d95b5839434b37aab2a73f5-968c0bf5a3ffd907ef412f1755b44b02
New Arrivals
50108

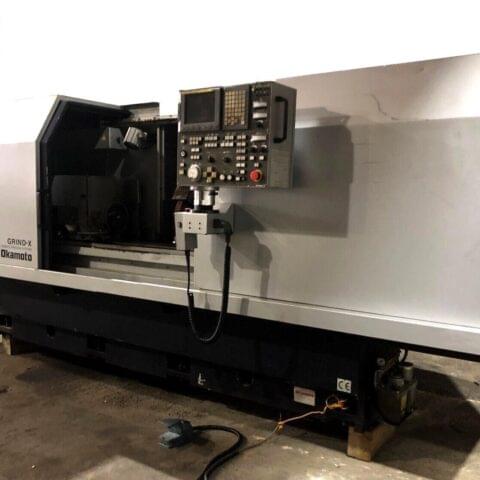

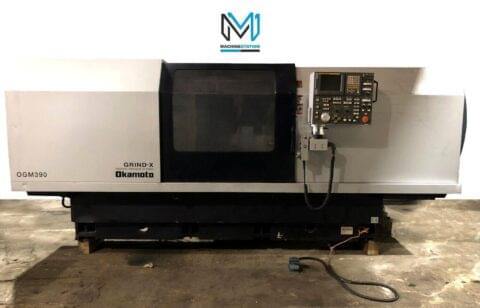

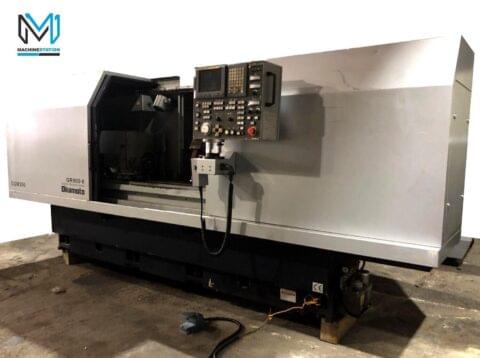

Okamoto OGM 390 CNC Cylindrical Grinder

WhatsApp Me
Array
(
    [equipped with:] => Array
        (
            [0] => Fanuc 21i-TB CNC Control
            [1] => Absolute/Incremental Combined Programming
            [2] => 4 x Subprograms
            [3] => Swivelable Table & Wheel-Head Fixed
            [4] => MPG Control
            [5] => Inch / Metric Conversion
            [6] => Stored Stroke Check
            [7] => Auto Reference Point Return
            [8] => Automatic Acceleration & Deceleration
            [9] => Coolant System
            [10] => Automatic Lubrication system
        )

    [capacity:] => Array
        (
            [0] => Max Grinding Diameter: 11.81″
            [1] => Max Grinding Length: 35.43″
            [2] => Max load Capacity: 39.9 kg
        )

    [grinding wheel:] => Array
        (
            [0] => Speed: 1890- 2687 RPM
            [1] => Wheel Size: 17.91″ X 2.95″ X 5″
        )

    [wheelhead:] => Array
        (
            [0] => X Axis Travel Distance: 11.81″
            [1] => Swivel Angle: +/- Fixed
            [2] => Least Travel Increment: 0.0001”
        )

    [workhead::] => Array
        (
            [0] => Swivel Angle: Fixed
            [1] => Center Taper: MT-4
            [2] => Spindle Bore Dia.: 0.79″
        )

    [table:] => Array
        (
            [0] => Z Axis Travel Distance: 50″
            [1] => Swivel Angle: 0 ~ -8.5 Degree
            [2] => Least Travel Increment: 0.0001”
        )

    [tailstock:] => Array
        (
            [0] => Tailstock Quill Stroke: 1.18″
            [1] => Tailstock Taper: MT-4
        )

    [general:] => Array
        (
            [0] => Power Source: AC 400 V Three Phase 50 Hz
            [1] => Power Requirement: 20 kva
            [2] => Overall Dimensions: 165″ x 92″ x 77″ High
            [3] => Weight : 4999.9 kg Approx.
        )

)
X Travel
Y Travel
Z Travel
Spindle
Tool Changer
Table
Pending Sale

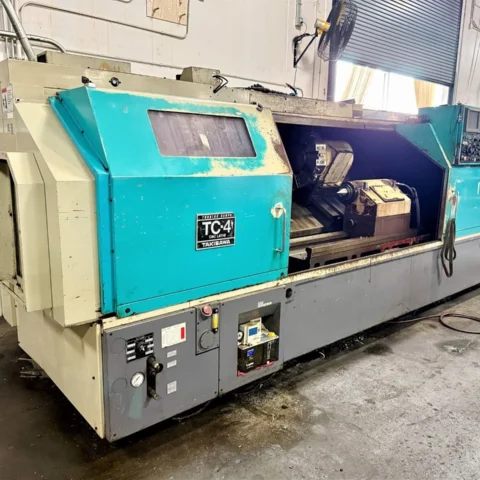

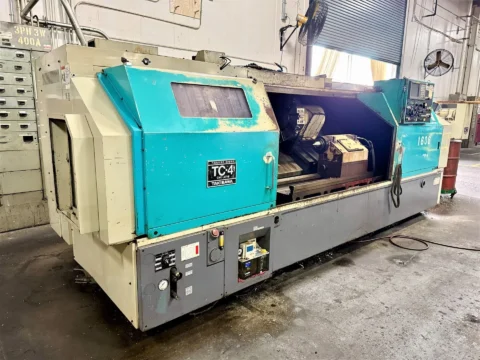

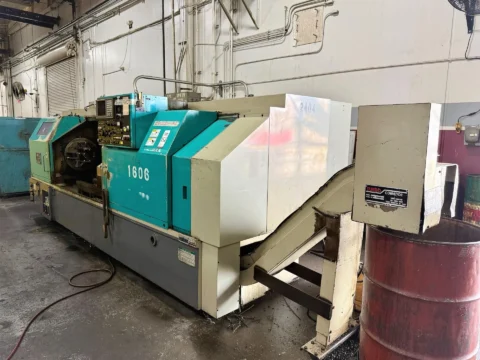

TAKISAWA TC-4 1TAKISAWA TC-4 2
New Arrivals
50110

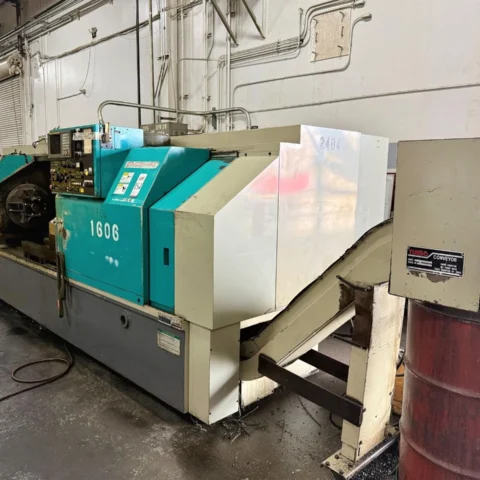

Takisawa TC-4 CNC Turning Center - 2000 MM Long Bed

WhatsApp Me
Array
(
    [equipped with:] => Array
        (
            [0] => Fanuc 18-T Series CNC Control
            [1] => Heavy Duty Box Guideways Construction
            [2] => 400 mm Fixture Plate Mounted on Spindle (300 mm - 375 mm Chuck Capable)
            [3] => 10 Station Automatic Turret
            [4] => A2-11 Gear Head Spindle
            [5] => 2500 RPM Spindle
            [6] => 104 mm Spindle Bore
            [7] => Tailstock
            [8] => Rigid Tapping
            [9] => Automatic Lubrication System
            [10] => Coolant System
            [11] => Chip Conveyor
        )

    [capacity:] => Array
        (
            [0] => Max Turning Diameter : 450 mm
            [1] => Max Swing Over Bed : 600 mm
            [2] => Max Turning Length: 2000 mm
            [3] => Max Bar Capacity : 89 mm
            [4] => Distance Between Centers : 2000 mm
        )

    [travels:] => Array
        (
            [0] => X Axis Travel : 250 mm
            [1] => Z Axis Travel : 2020 mm
            [2] => X Axis Rapid Traverse Rate : 12000 mm/min
            [3] => Z Axis Rapid Traverse Rate : 16000 mm/min
        )

    [spindle:] => Array
        (
            [0] => Spindle Nose: A2-11
            [1] => Spindle Bore: 104 mm
            [2] => Spindle Speed: 20 - 2500 RPM
            [3] => Spindle Motor: 26 kW
        )

    [turret:] => Array
        (
            [0] => Capacity: 10 Station
            [1] => Tool Holders Type: Bolt Mounted
        )

    [tailstock:] => Array
        (
            [0] => Tailstock Taper: MT-5
        )

    [general:] => Array
        (
            [0] => Power: 220v / 3-phase / 60 Hz
            [1] => Machine Diemensions: 4,940 mm x 2331 mm x 2,190 mm High
            [2] => Machine Weight: 9,000 kg
        )

)
X Travel
Y Travel
Z Travel
Spindle
Tool Changer
Table

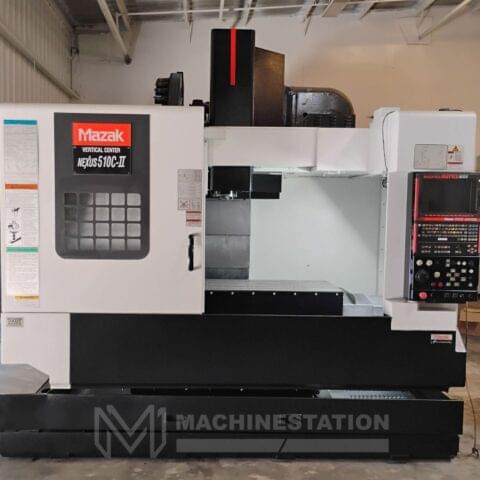

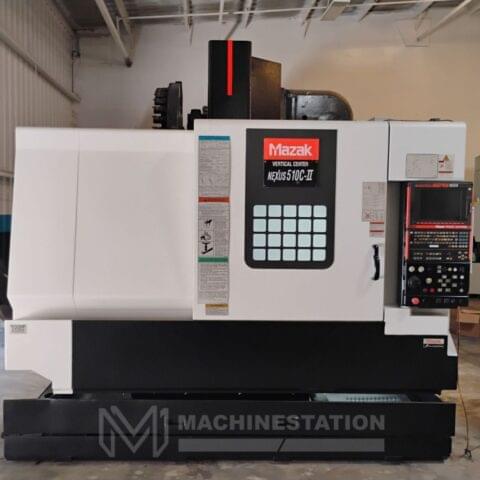

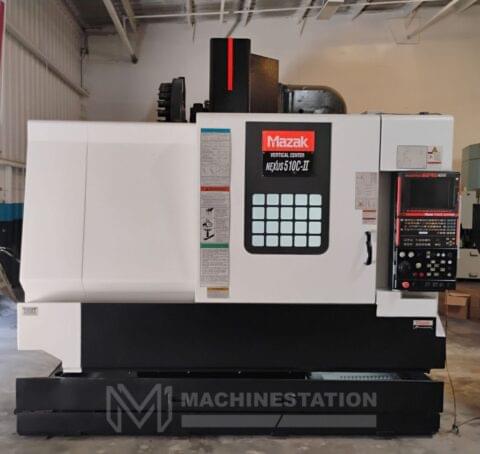

MAZAK-VCN-510C-II (1)MAZAK-VCN-510C-II (4)
112978

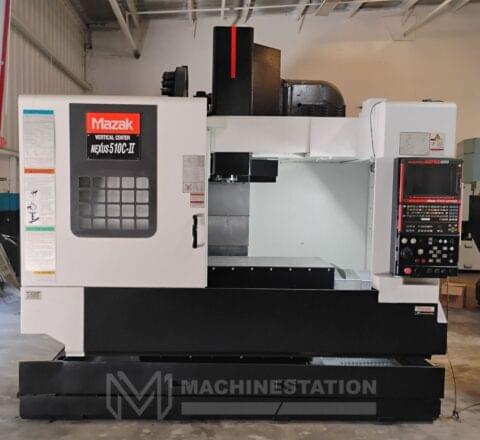

Mazak VCN 510C-II CNC Vertical Machining Center - Mill

WhatsApp Me
Array
(
    [equipped with:] => Array
        (
            [0] => Mazatrol Matrix Nexus CNC Control
            [1] => 12,000 RPM High Speed Spindle
            [2] => 30 Station Automatic tool changer
            [3] => CAT-40 Taper Spindle
            [4] => 25 HP High Torque Spindle
            [5] => Automatic Lubrication System
            [6] => Rigid Tapping
            [7] => Coolant System
        )

    [travels:] => Array
        (
            [0] => X-Axis: 41.3"
            [1] => Y-Axis: 20.8"
            [2] => Z-Axis: 20.8"
            [3] => Rapid Traverse Rates Axis: 1417 IPM
            [4] => Cutting Feed Rates: 787 IPM
            [5] => Spindle Nose to Table (Min.- Max.): 5.9" - 26"
        )

    [table:] => Array
        (
            [0] => Length: 51.18"
            [1] => Width: 21.65"
            [2] => Number of Std T-Slots: 5
            [3] => T-Slot Width: 5/8"
            [4] => Max Weight on Table: 2646 lbs
        )

    [spindle:] => Array
        (
            [0] => Taper Size: CAT-40
            [1] => Speed Range: 12000 RPM
            [2] => Spindle Type: Direct Drive
            [3] => Spindle Power: 25 HP
        )

    [automatic tool changer:] => Array
        (
            [0] => Capacity: 30 Station Side Mounted
            [1] => Max Tool Weight: 13.78 lbs
            [2] => Max Tool Dia: 3.15"
            [3] => Max Tool Length: 13.78"
            [4] => Tool Changing Time : 1.3 Seconds
        )

    [general:] => Array
        (
            [0] => Air Required: 80 psi, 4 scfm
            [1] => Power: 220v / 30 kva / 3-Phase
            [2] => Overall Dimensions: 120" x 112" x 114" High
            [3] => Weight: 15,200 lbs
        )

)
X Travel
Y Travel
Z Travel
Spindle
Tool Changer
Table

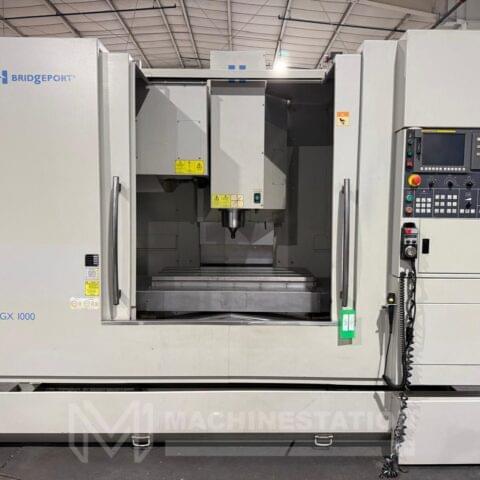

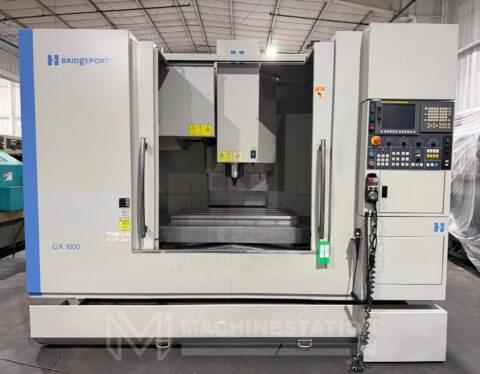

HARDINGE-BRIDGEPORT-GX-1000 (1)HARDINGE-BRIDGEPORT-GX-1000 (4)
113549

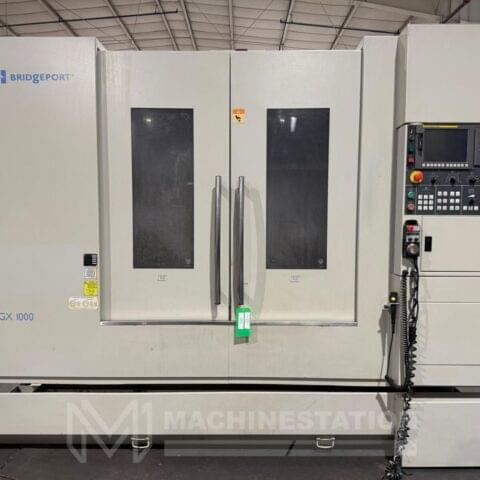

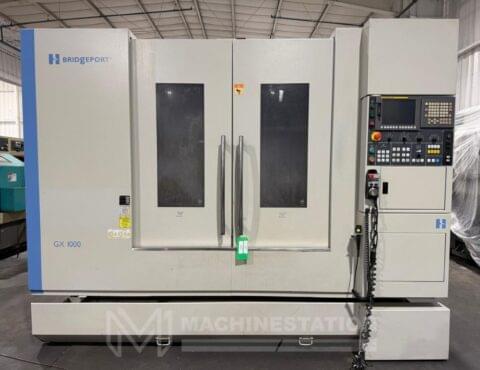

Hardinge Bridgeport GX-1000 CNC Vertical Machining Center - 10,000 RPM Mill

$999.00
WhatsApp Me
Array
(
    [features:] => Array
        (
            [0] => Fanuc Oi-MD Series CNC Control
            [1] => 4th Axis Wired
            [2] => 10000 RPM High Precision Spindle
            [3] => 30 Station Side Mounted Automatic Tool changer
            [4] => PCMCIA Card Slot
            [5] => Hand Wheel MPG Control
            [6] => Rigid Tapping
            [7] => Spindle Chiller Unit
            [8] => Coolant System
            [9] => Books & Manuals
        )

    [table:] => Array
        (
            [0] => Length: 44.09″
            [1] => Width: 21.25″
            [2] => Number of Std T-Slots: 3
            [3] => T-Slot Width: 0.7″X 3.93″
            [4] => Max Weight on Table: 1543 lbs
        )

    [travels:] => Array
        (
            [0] => X-Axis: 40.15″
            [1] => Y-Axis: 21.25″
            [2] => Z-Axis: 21.25″
            [3] => Rapid Traverse Rates X & Y Axis: 1692 IPM
            [4] => Rapid Traverse Rates Z Axis: 1417 IPM
            [5] => Cutting Feed Rates: 787 IPM
            [6] => Spindle Nose to Table (Min.- Max.): 5.70″ – 26.96″
        )

    [spindle:] => Array
        (
            [0] => Taper Size: CAT-40
            [1] => Speed Range: 10000 RPM
            [2] => Spindle Power: 25 HP
        )

    [automatic tool changer:] => Array
        (
            [0] => Capacity: 30 Station Side Mounted
            [1] => Max Tool Weight: 15.43 lbs
            [2] => Max Tool Dia: 5.11"
            [3] => Max Tool Length: 11.81″
            [4] => Tool Changing Time (Chip to Chip): 1.6 Seconds
        )

    [general:] => Array
        (
            [0] => Air Required: 80 psi, 4 scfm
            [1] => Power: 220v / 60 Hz / 3-Phase
            [2] => Overall Dimensions: 116″ x 86″ x 106″ High
            [3] => Weight: 14,330 lbs
        )

)
X Travel
Y Travel
Z Travel
Spindle
Tool Changer
Table

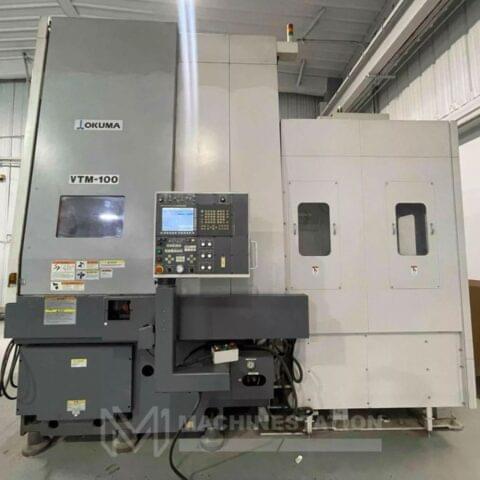

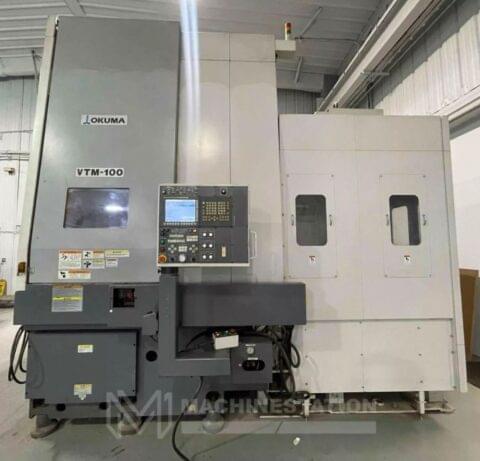

OKUMA-VTM-100 (1)OKUMA-VTM-100 (3)
113565

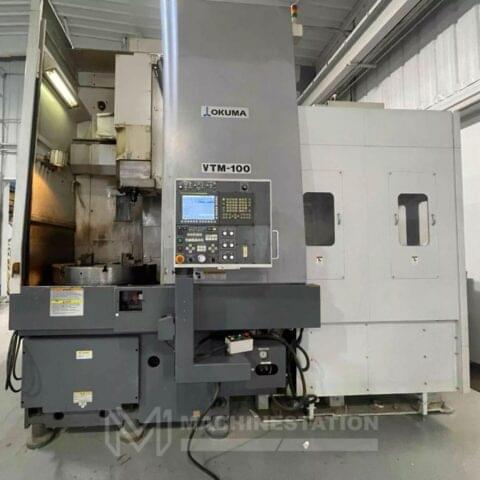

Okuma VTM-100 CNC Vertical Turning Center - Live Tool C Axis VTL

WhatsApp Me
Array
(
    [equipped with:] => Array
        (
            [0] => Fanuc 31i-MA Series CNC Control
            [1] => 39.37″ 4-Jaw Chuck
            [2] => C Axis Live Tool
            [3] => 50 Taper Milling Spindle
            [4] => 60 Station Automatic Tool Changer
            [5] => A2-11 Spindle Nose
            [6] => 4.33" Spindle Bore
            [7] => Probing System (Tool Probe Included)
            [8] => Through Spindle Coolant
            [9] => PCMCIA Card Slot
            [10] => RS232 Port
            [11] => Coolant System
            [12] => Chip Conveyor
            [13] => Foot Swiches
        )

    [capacity:] => Array
        (
            [0] => Max Machining Diameter: 39.37″
            [1] => Max Machining Height: 33.07″
            [2] => Max Swing Diameter: 39.37″
            [3] => Max Workpiece Load: 2,640 lbs
        )

    [travel:] => Array
        (
            [0] => X Axis Travel: 25.59″
            [1] => Z Axis Travel: 30.07″
            [2] => C Axis: 360° (0.001°)
            [3] => Rapid Traverse X Axis: 630 IPM
            [4] => Rapid Traverse Z Axis: 630 IPM
        )

    [spindle:] => Array
        (
            [0] => Spindle Nose: A2-11
            [1] => Spindle Bore: 4.33″
            [2] => Spindle Speed:  10 - 1,250 RPM
            [3] => Spindle Motor: 40 HP
        )

    [turret (tool spindle):] => Array
        (
            [0] => Turret Type: ATC Single Tool
            [1] => Tool Size: 1.0", 1.25"
            [2] => Boring Bar Diameter: ø1.5", ø2.0"
        )

    [milling tool spindle:] => Array
        (
            [0] => Max Spindle Speed: 10 - 4,500 RPM
            [1] => Speed Ranges: 2 Auto Ranges
            [2] => Taper: 50
        )

    [auotmatic tool changer:] => Array
        (
            [0] => Capacity: 60 Tools
            [1] => Max Tool Diameter: 6.70″ - 9.84"
            [2] => Max Tool Length: 19.69″
            [3] => Max Tool Weight: 66 lbs
        )

    [general:] => Array
        (
            [0] => Power Source: AC 220/480 V, Three Phase, 60 Hz
            [1] => Overall Diemensions: 169″ x 126″ x 169″ High
            [2] => Weight : 29,700 lbs Approx.
        )

)
X Travel
Y Travel
Z Travel
Spindle
Tool Changer
Table

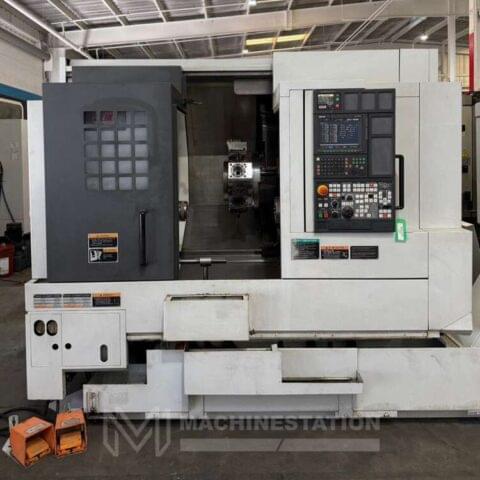

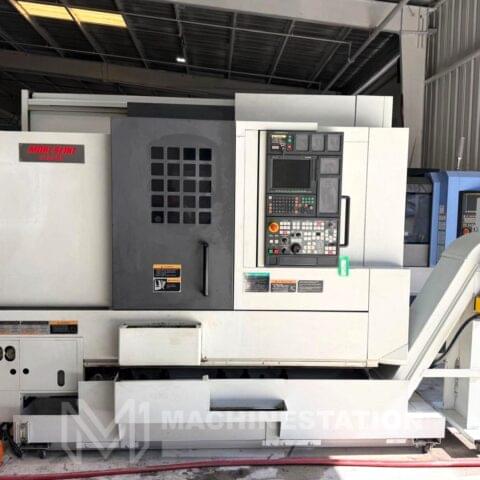

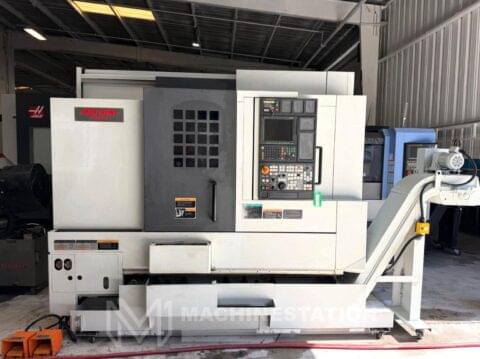

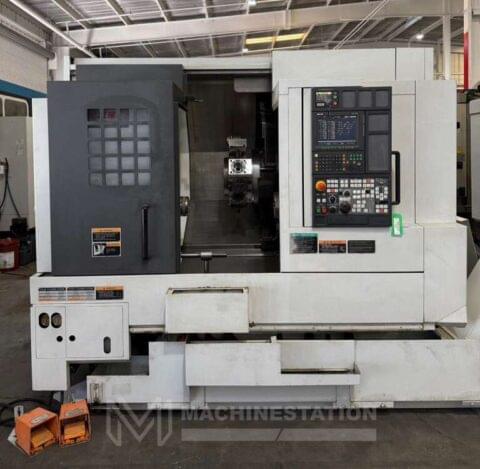

Untitled design - 1MORI-SEIKI-NL-2000SY-500 (7)
,
113550

Mori Seiki NL-2000SY/500 CNC Turning Center - Sub Spindle, Y Axis, Bar Feeder Lathe

WhatsApp Me
Array
(
    [equipped with:] => Array
        (
            [0] => Mori Seiki MSX-850III CNC Control
            [1] => LNS Hydrobar Bar Feeder
            [2] => Collet Chuck (Capable 10" Chuck) On Main Spindle
            [3] => 6″ 3-Jaw Kitagawa B-206 Chuck On Sub Spindle
            [4] => Servo Controlled C Axis On Both Spindles
            [5] => 12 Station Live Tool Turret
            [6] => Y Axis On Turret
            [7] => Tool Presetter
            [8] => Parts Catcher
            [9] => PCMCIA Card Slot
            [10] => RS-232
            [11] => Rigid Tapping
            [12] => Coolant System
            [13] => Transformer
            [14] => Chip Conveyor
            [15] => Misc Tool Holders Mounted on Turret (As shown in the images)
        )

    [capacity:] => Array
        (
            [0] => Max Turning Diameter: 14.4"
            [1] => Max Turning Length: 20.0″
            [2] => Swing Over Bed: 22.8″
            [3] => Max Bar Capacity: 2.50″
        )

    [travel:] => Array
        (
            [0] => X Axis Travel: 10.2″
            [1] => Z Axis Travel: 23.2″
            [2] => Y Axis Travel: 3.9″ (±2.0)
            [3] => B Axis Travel (Sub Spindle): 24.6″
            [4] => C Axis: 360° (0.001°)
            [5] => Rapid Traverse X,Z,B Axis: 1181 IPM
            [6] => Rapid Traverse Y Axis: 394 IPM
        )

    [main spindle:] => Array
        (
            [0] => Main Spindle Nose: A2-6
            [1] => Main Spindle Bore: 2.9″
            [2] => Main Spindle Speed: 5000 RPM
            [3] => Main Spindle Motor: 20 HP
        )

    [sub spindle:] => Array
        (
            [0] => Sub Spindle Nose: A2-5
            [1] => Sub Spindle Bore: 1.7″
            [2] => Sub Spindle Speed: 6000 RPM
            [3] => Sub Spindle Motor: 15 HP
        )

    [turret:] => Array
        (
            [0] => Turret Capacity: 12 Stations
            [1] => Turret Index Time: 0.25 Second
            [2] => Rotary Tool Speed: 6,000 RPM
            [3] => Rotary Tool Motor: 7.5 HP
            [4] => Tool Holders Type: Bolt Mounted
        )

    [general:] => Array
        (
            [0] => Power Source: AC 220 V, Three Phase, 60 Hz
            [1] => Power Requirement: 38 kva
            [2] => Overall Dimensions: 107" X 79" X 84" High
            [3] => Weight : 12,785 lbs. Approx.
        )

)
X Travel
Y Travel
Z Travel
Spindle
Tool Changer
Table
View All

Top CNC Machine Categories

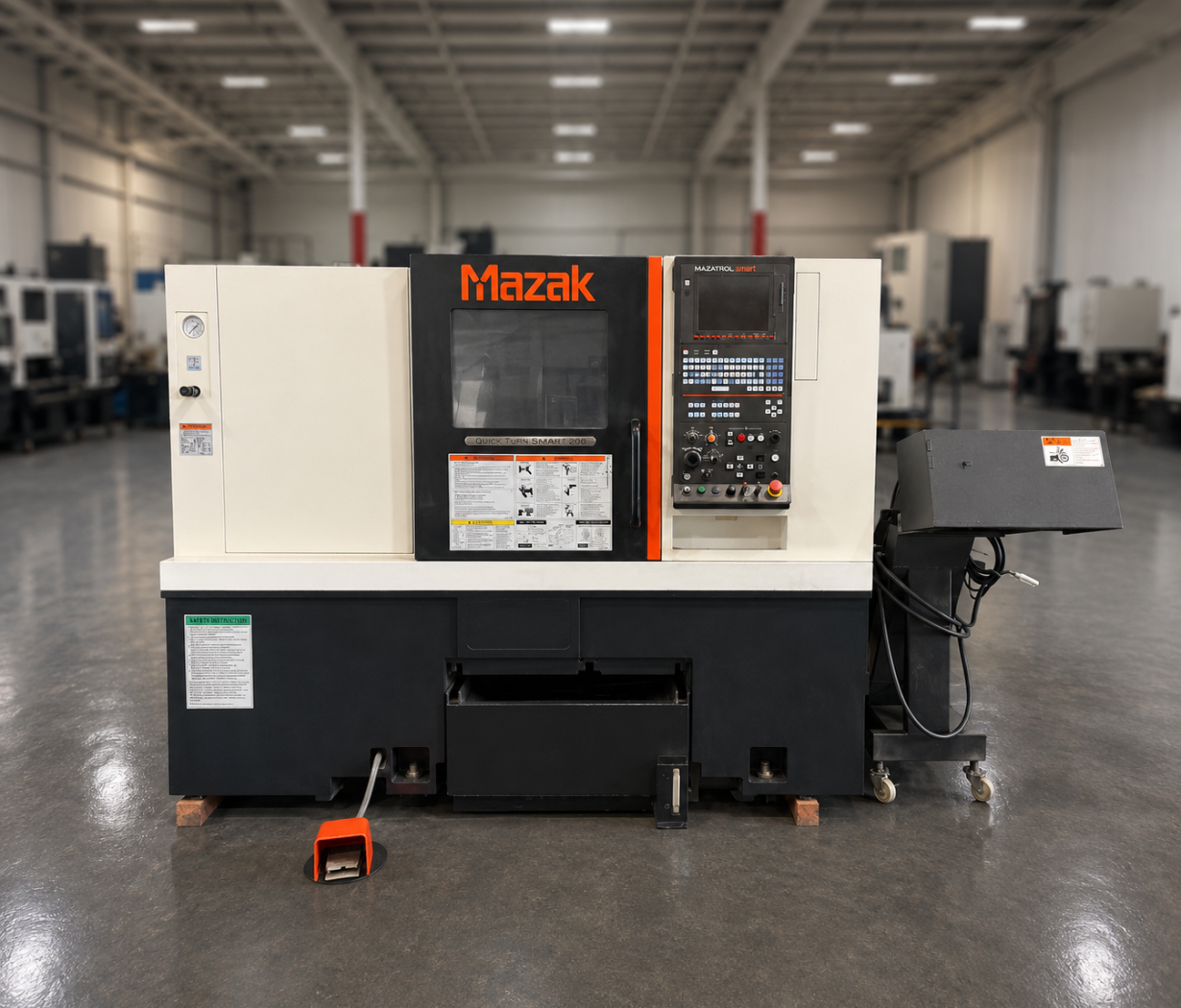

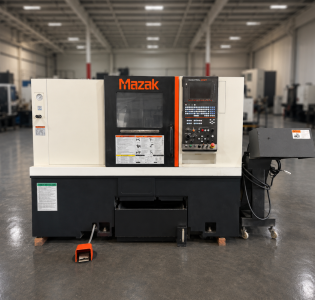

top categories turning center

CNC Turning Centers

View All

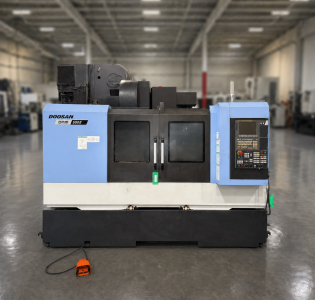

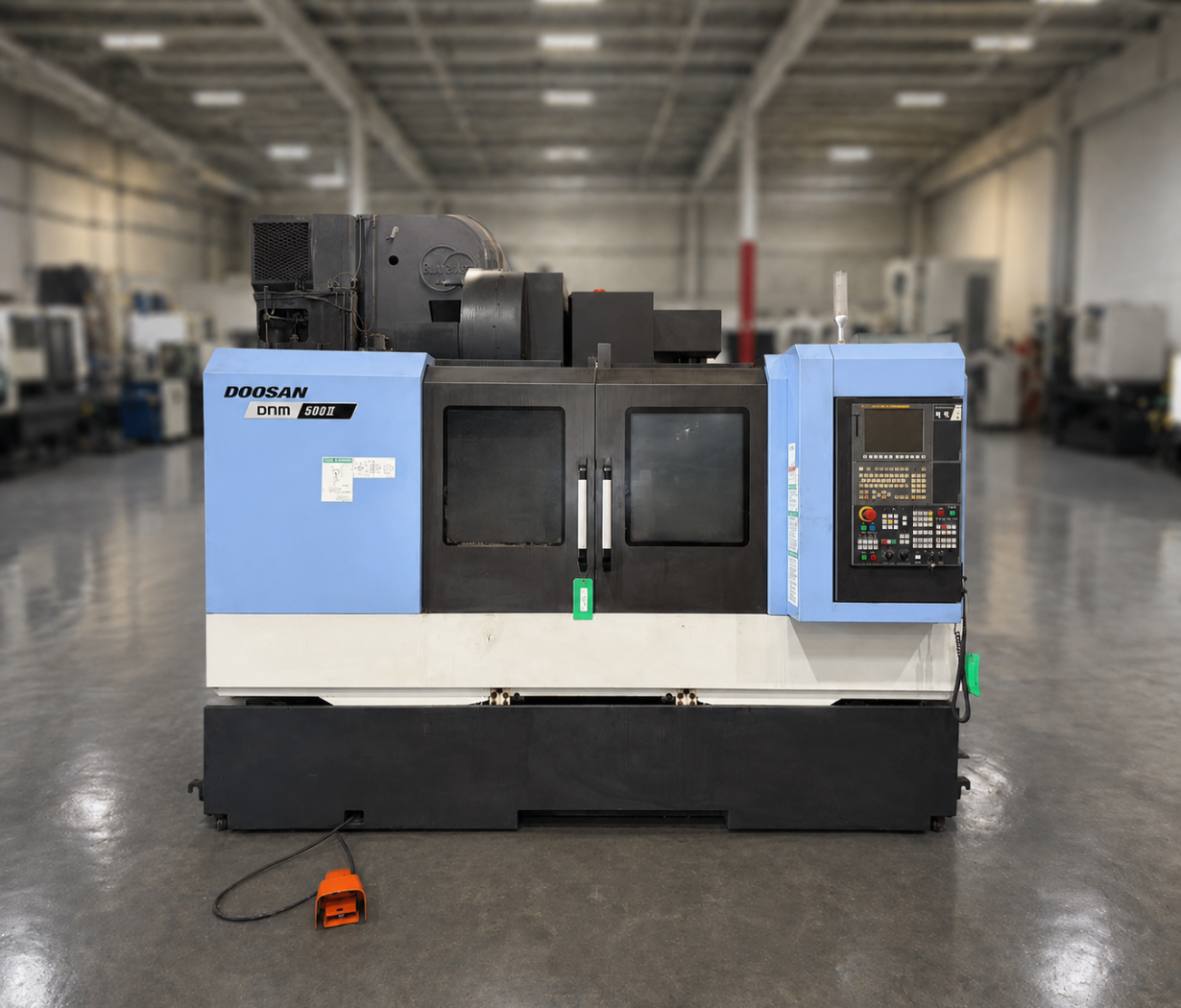

top categories VMC

CNC Vertical Machining Centers

View All

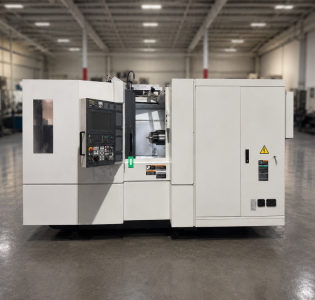

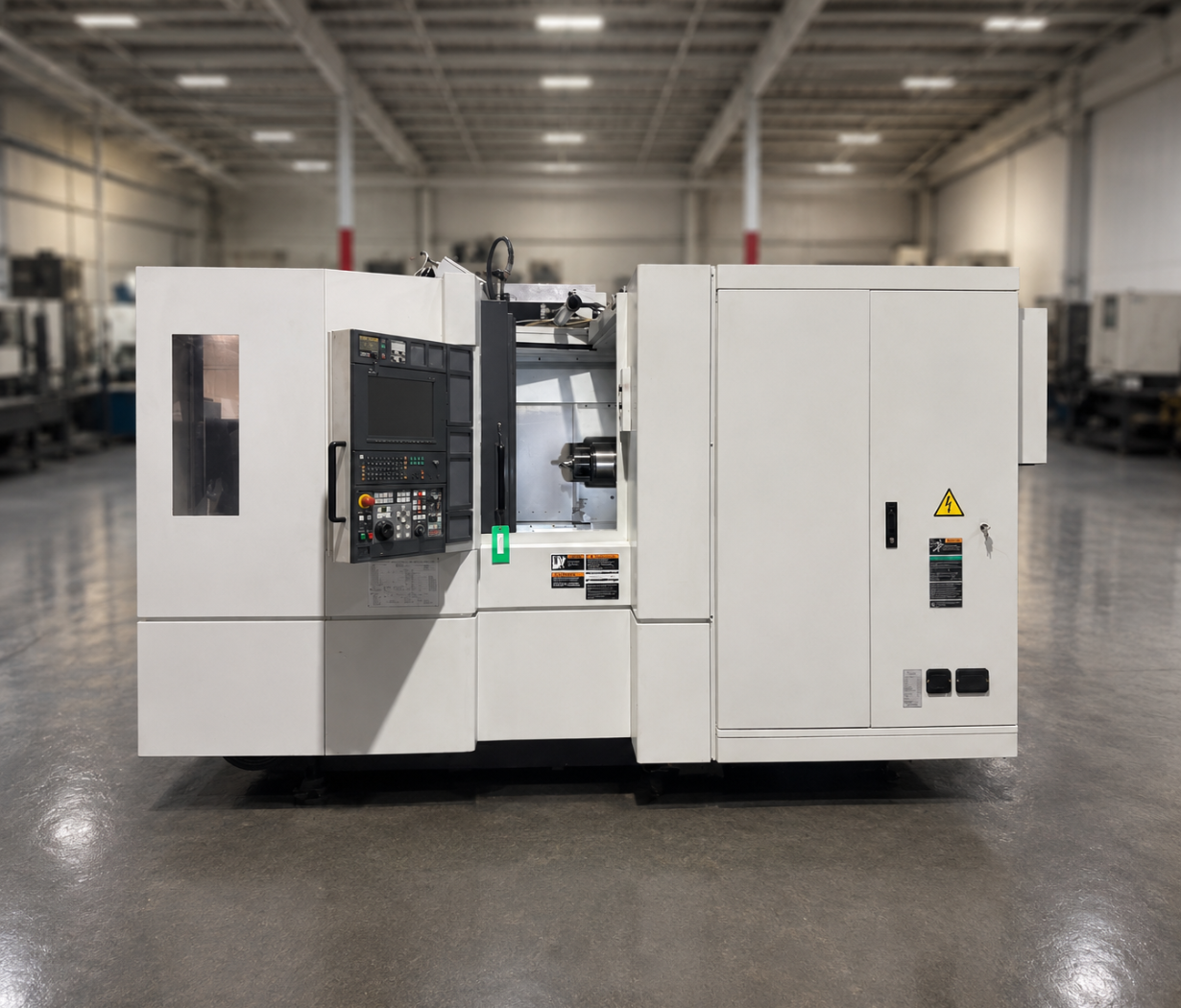

top categories HMC

CNC Horizontal Machining Center

View All

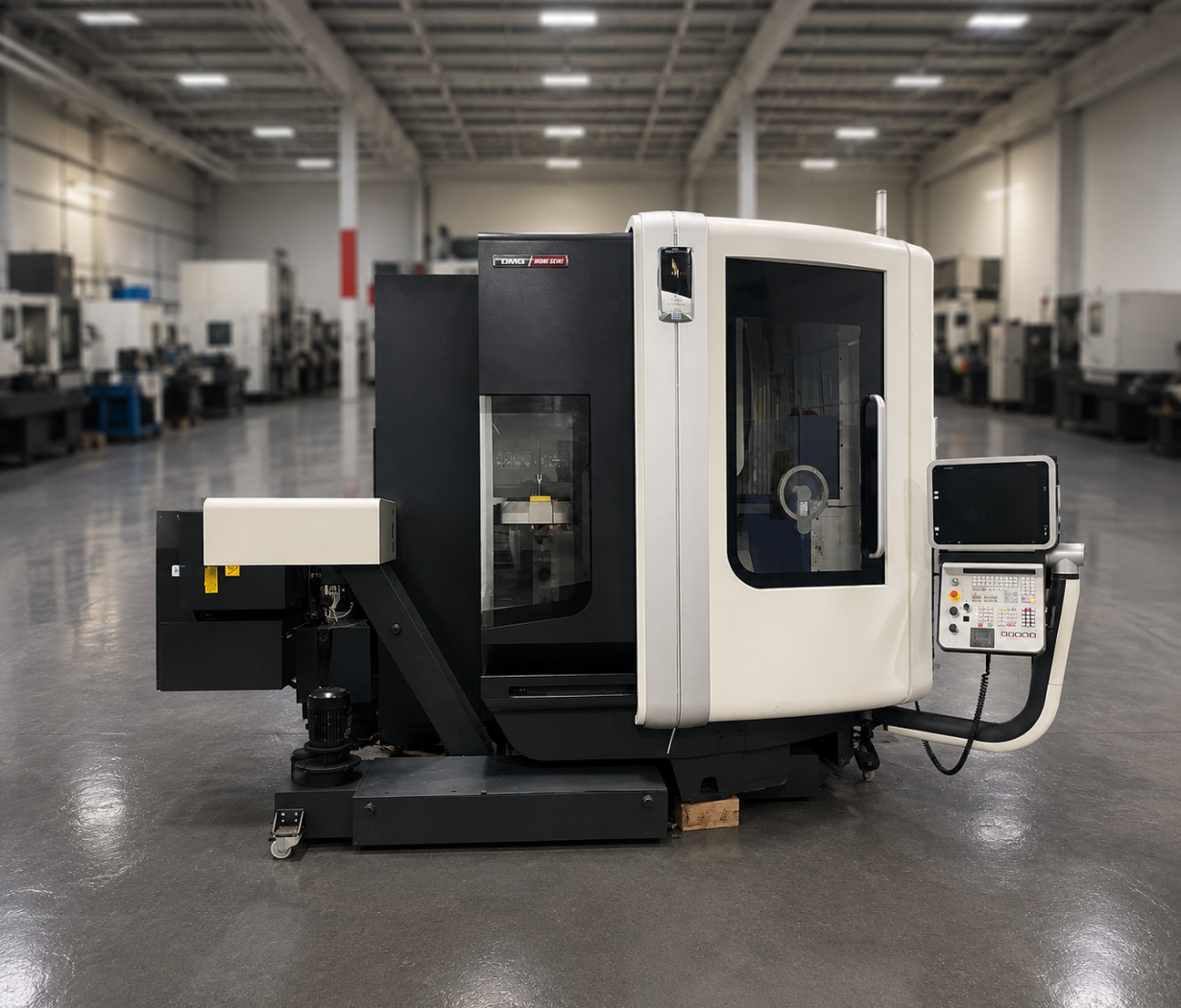

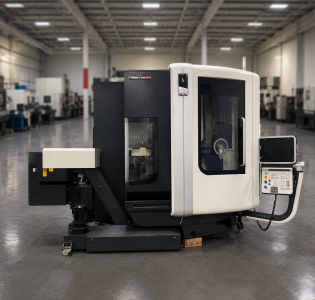

top categories multi axis

CNC 5-Axis Machining Center

View All

Popular Brands

DMG Mori
Doosan
Femco
Hyundai-latest
Makino
Nakamura-latest
Okamoto-latest
Okk
Takisawa-latest
Tsugami
Tos
Toyoda
YS-latest
ycm

Our Blog

Looking for Something Specific

Looking for a specific Used CNC machine but not sure where to begin? Share your requirements with us, and our dedicated Search Agent will reach out to understand your needs. We’ll help you find the ideal machine that fits your shop’s workflow, budget, and production goals — making your buying process faster and easier.

Please enable JavaScript in your browser to complete this form.
Are you a Reseller?
=

Sign Up for Our Newsletter

Sign up to receive regular updates on new arrivals, exclusive deals, and special offers on used CNC machines.

Please enable JavaScript in your browser to complete this form.
  • Popular Categories
Menu
Product has been added to your cart
