*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

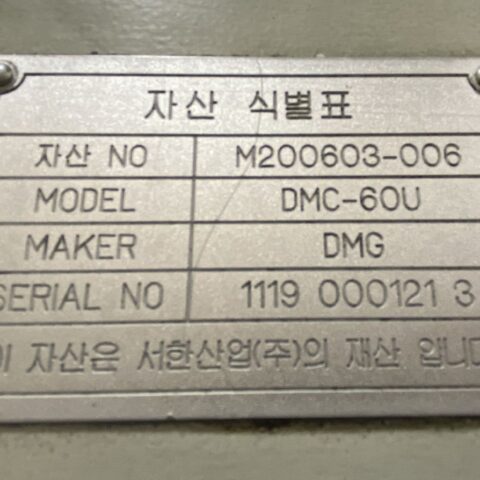

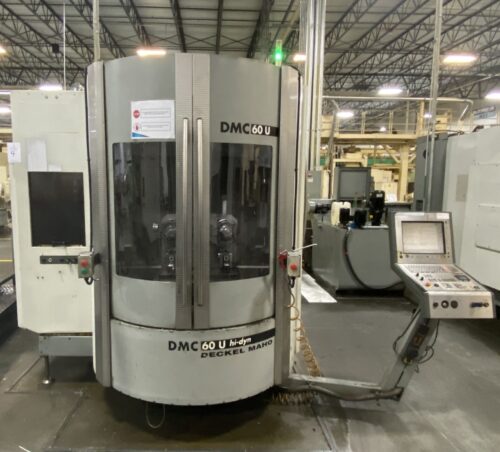

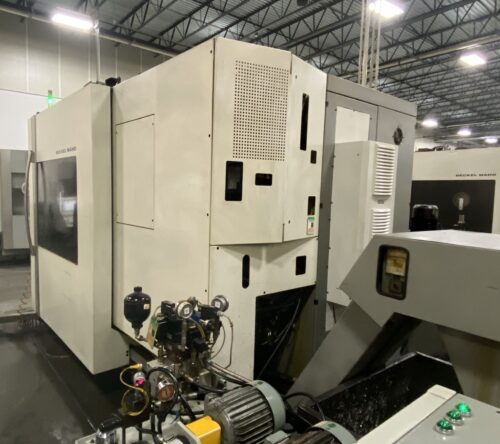

| Make: | DECKEL MAHO |

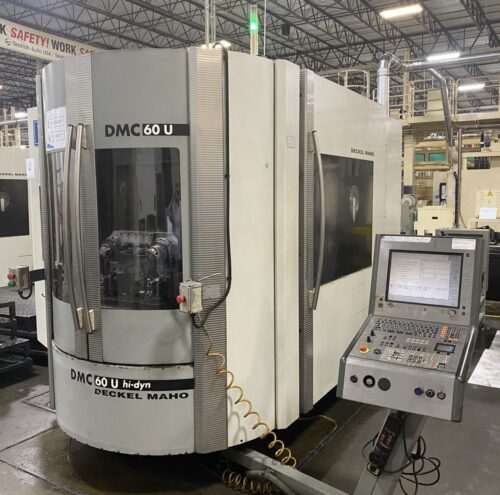

| Model: | DMC 60U HI-DYN |
| Year: | 2004 |
| Condition: | Used – Good |
| Features: |

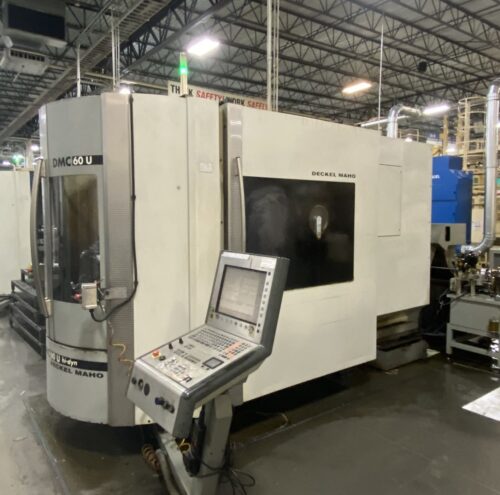

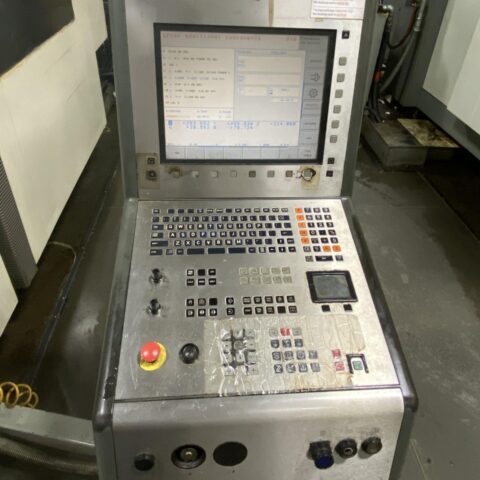

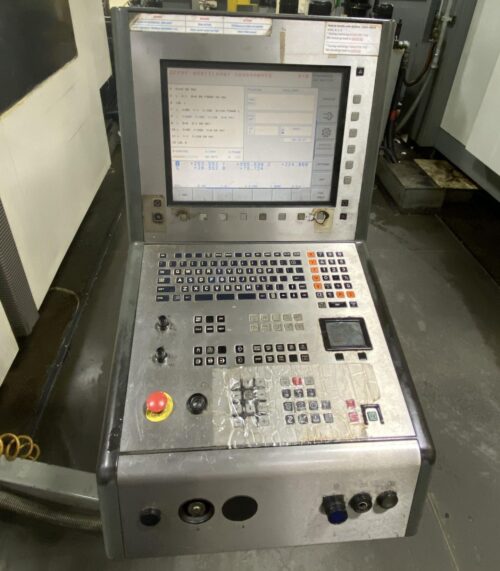

| Heidenhain iTNC520 CNC Control |
| 5th Axis Drive |
| 3600-Deg Positioning |
| 12000 RPM High Precision Spindle |
| Coolant through Spindle |
| 30 High Speed Tool Changer |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |

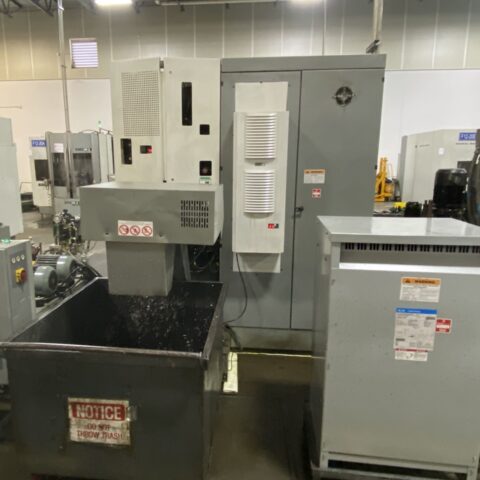

| Flood coolant with large separate coolant tank |

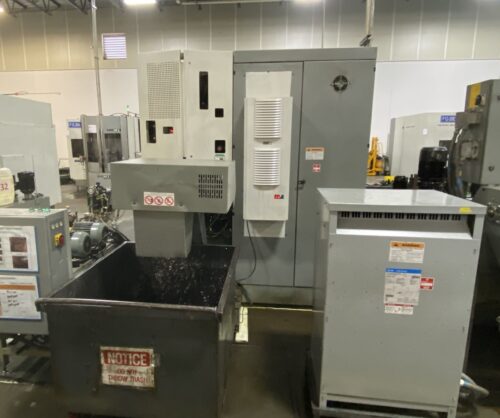

| Chip Conveyor |
| Work light |
| Travels: |
| X Axis: 600 mm |
| Y Axis: 700 mm |
| Z Axis: 600 mm |
| B Axis: -30° +180° |

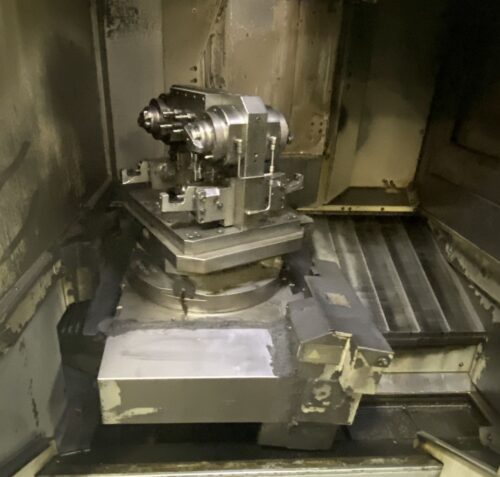

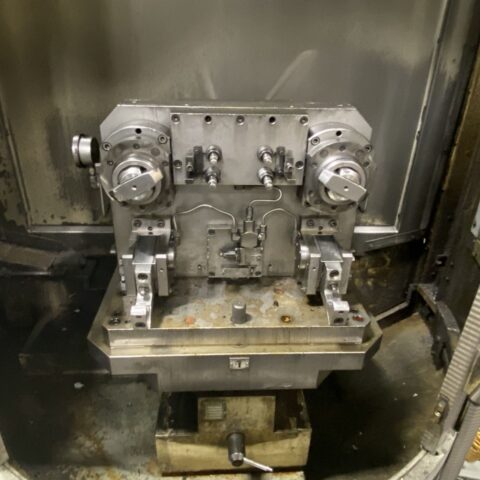

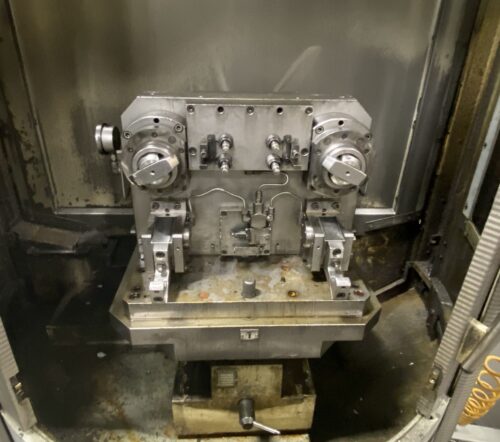

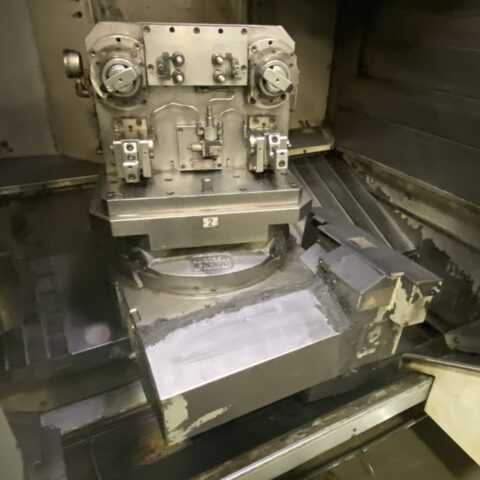

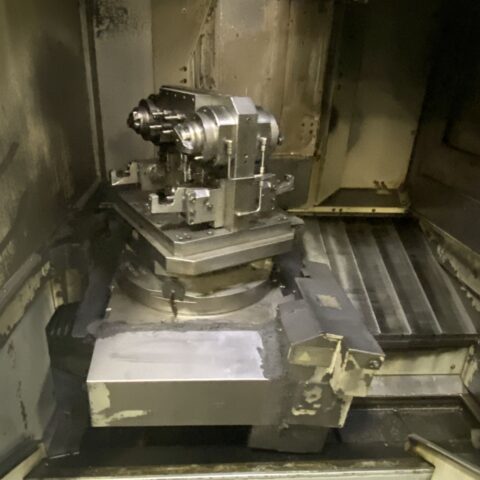

| Table: |
| Length: 635 mm |
| Width: 510 mm |
| Max Weight on Table: 1322 lbs |
| Max Workpiece Diameter: 635 mm |
| Index Time: seconds |
| Spindle: |
| Taper Size: HSK 40 |
| Max. Speed: 12000 RPM |
| Power: 28 HP |
| Torque: ft/lbs |
| Feed rates: |
| Rapid X & Y : 50,000 mm Per Minute |
| Rapid Z : 50,000 mm Per Minute |
| Cutting Feedrate: Inch Per Minute |
| Tool changer: |
| Capacity: 30 Tools |
| Taper: 40 |
| Max Tool Size: 80 mm |
| Max Tool Length: 400 mm |
| Max Tool Weight: 15 Kg. |
| Tool Change Time: 3.7 Second |
| General: |
| Air Required: 90 psi 4 scfm |
| Power: 45kva / 205-220v / 3-Phase |
| Shipping Dimension: 4750 mm X 2490 mm x 2745 mm High |
| Weight: 10,400 Kg. |
