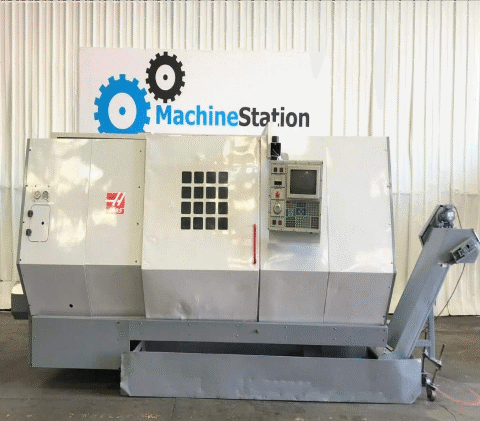

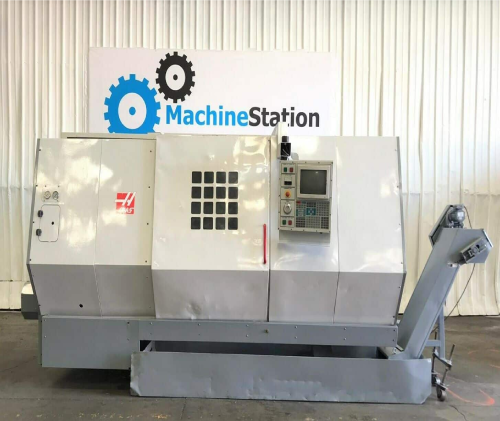

| HAAS HL-6 CNC LONG BED TURNING CENTER | |
|---|---|
| Make | Haas |
| Model No. | HL-6 |
| Year | 06/1998 |
| Condition | MLS |
| Comes with 15″ Chuck, Tailstock & Chip Conveyor | |
All specifications are approximations and are subject to verification.
- Haas HL-6 CNC Equipped With:
- Haas 32Bit CNC Control

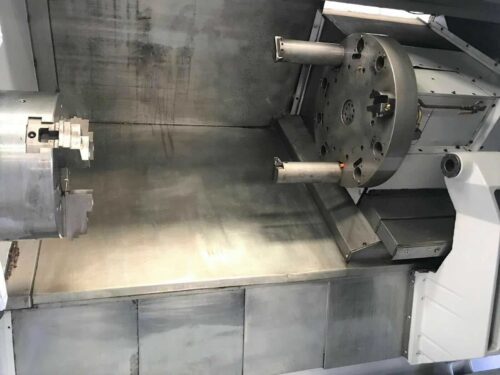

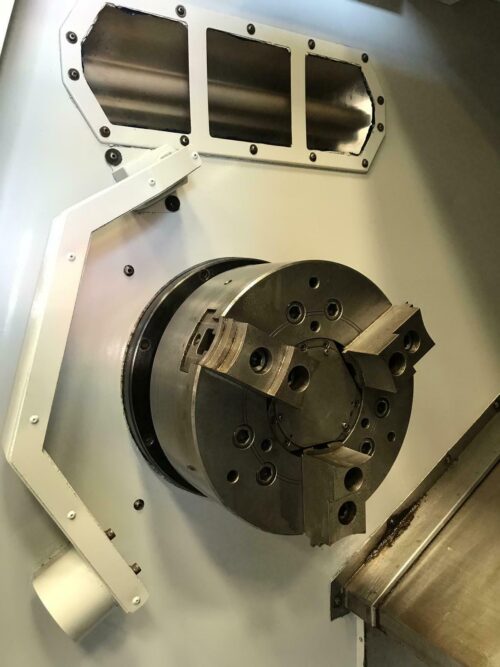

- 15″ 3 Jaw Hydraulic Chuck
- A2-8 Spindle
- Programmable Tailstock
- Coolant System
- Barfeed Interface
- RS-232 ports
- 10 Station Automatic Turret
- Chip Conveyor
- Haas HL-6 CNC Specifications:
- Capacity:
- Max Turning Diameter: 25.0″
- Max Turning Length: 44.0″
- Max Bar Capacity: 4.0″
- Swing Over Bed: 40.0″
- Distance Between Centers: 51.0″
- Travels:
- X Axis Travel: 17.0″
- Z Axis Travel: 44.0 ”
- Rapid Traverse X Axis: 710 IPM
- Rapid Traverse Z Axis: 710 IPM
- Spindle:
- Spindle Nose: A2-8
- Spindle Bore: 4.62″
- Spindle Speed: 24 – 2400 RPM
- Spindle Motor: 30 HP
- Turret:
- Turret Capacity: 10 Stations
- Turret Index Time: 1 Second
- Tailstock:
- Tailstock Taper: MT-5
- Tailstock BodyTravel: 44.0″
- General:

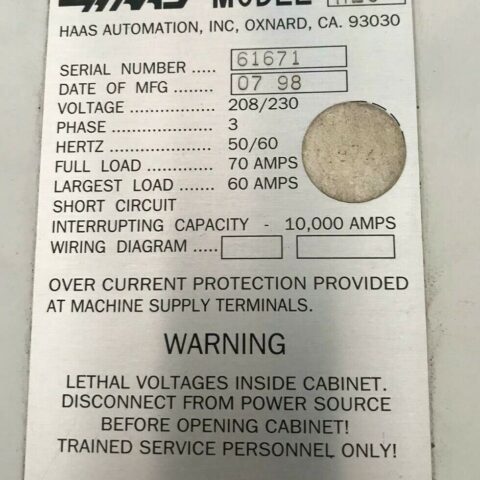

- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 150″ X 90″ X 90 ” High
- Overall Dimensions: 190″ X 90″ X 90″ High with Chip Conveyor
- Weight: 23000 lbs
