| HWACHEON 300LMC CNC TURNING LONG BED LATHE | |
|---|---|
| Make | Hwacheon |
| Model No. | Hi-Tech 300 |
| Year | 2011 |
| Condition | MLS |
| Comes with 3 jaw Chuck, Tool Presetter, Tailstock & Chip Conveyor
Replacement Cost is approx. $185,000.00 with similar options. |
|
All specifications are approximations and are subject to verification.
- Hwacheon 300LMC CNC Equipped With:

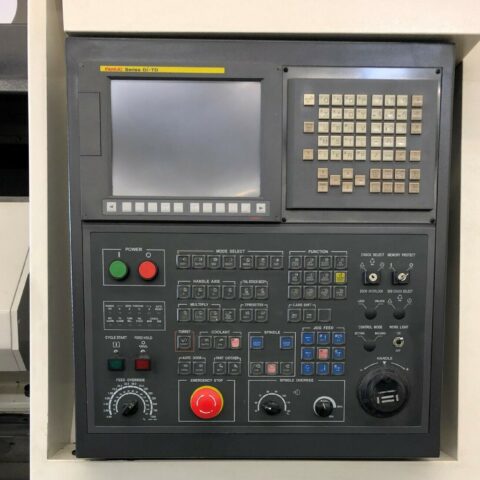

- Fanuc 0i-TD series CNC Control
- C Axis

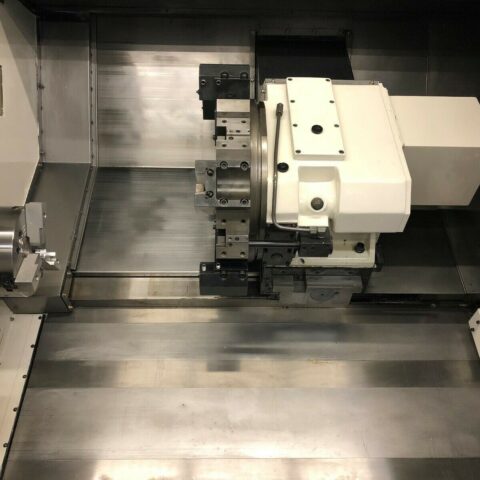

- 12 Station Live Tool Turret
- Box way construction
- Rigid Tapping
- 12″ 3 Jaw Hydraulic Chuck
- A2-8 Spindle
- Auto Tool Presetter
- Hydraulic Programmable Tailstock and Quill
- PCMCIA Card Slot
- Coolant System
- Barfeed Interface
- Chip Conveyor
- General:
- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 150″ x 77″ x 80″ High
- Overall Dimensions: 168″ x 77″ x 80″ High with Chip Conveyor
- Weight: 18700 lbs
- Hwacheon 300LMC CNC Specifications:
- Capacity:
- Max Turning Diameter: 14.9″
- Max Turning Length: 48.82″
- Max Bar Capacity: 3.54″
- Swing Over Bed: 23.62″
- Distance Between Centers: 50.8″
- X Axis Travel: 11.02″
- Z Axis Travel: 33.3″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.5″
- Spindle Speed: 0 – 3200 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Live Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.97″
- Tailstock Quill Travel: 4.7″

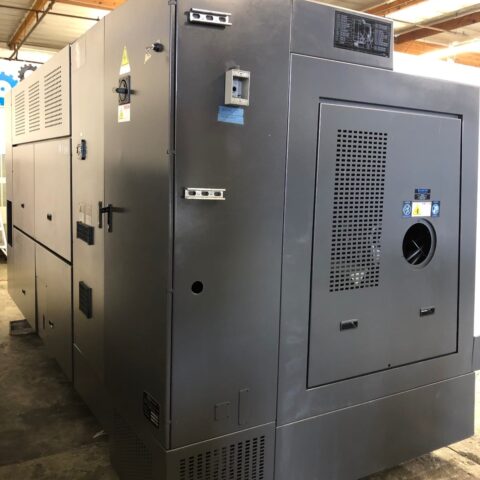

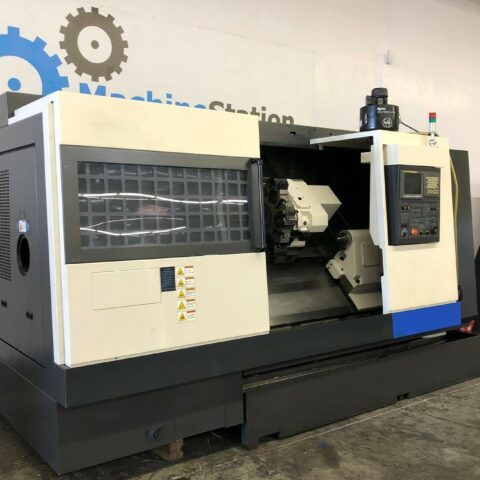

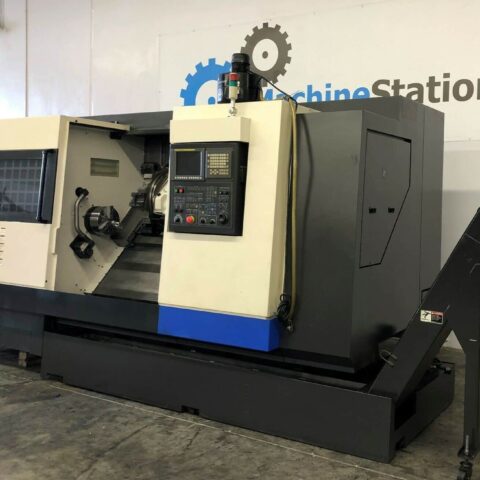

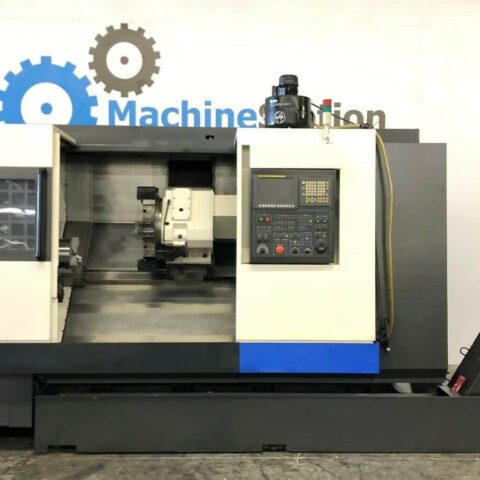

Hwacheon 300LMC CNC Comes as shown in pictures..
