*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

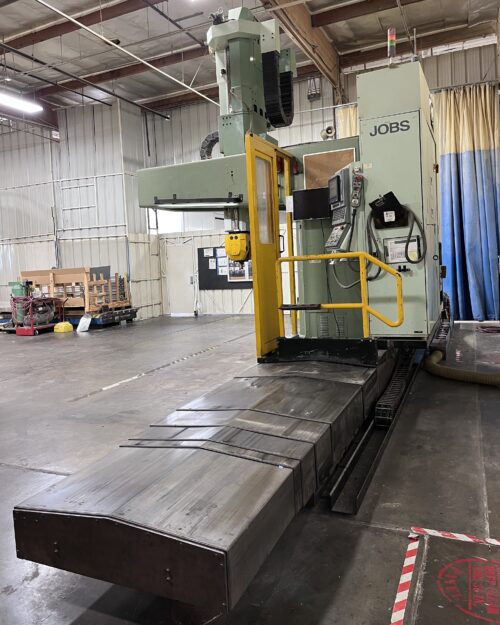

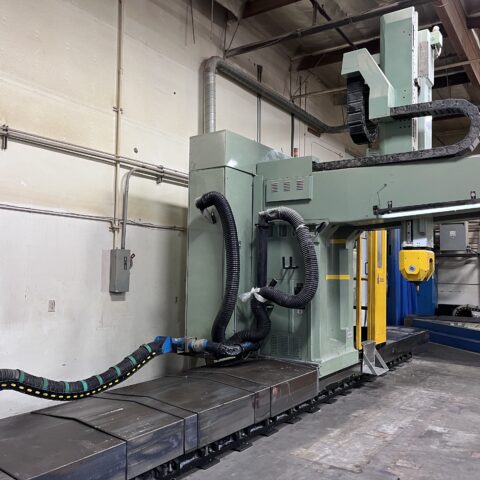

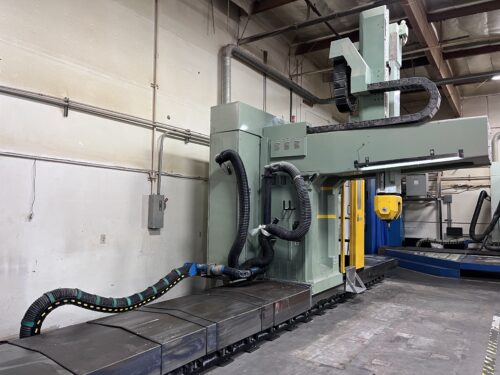

| Make: | JOBS |
| Model: | JOMACH 32 |
| Year: | 1999 |
| Condition: | Used – Good |
| Equipped With: |
|---|

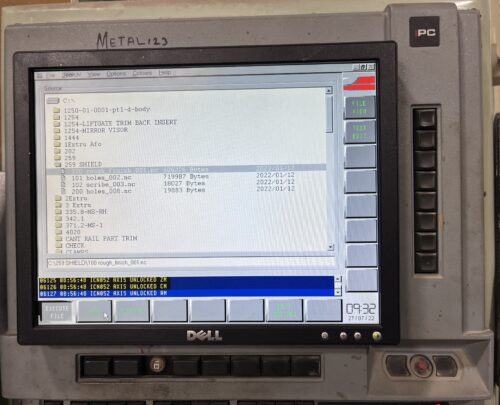

| FIDIA C-20 Series CNC Control |
| Simultaneous 5 Axis Cutting |
| Swivel Milling Head (A & C Axis) |
| Three-Dimensional Milling |
| Three-Dimensional Measuring System |
| 24000 RPM High Speed Spindle? |
| Fast Rapid Traverse Rate |
| Hand Wheel MPG Control |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Telescopic Way Covers |
| Travels: |
|---|
| X Axis: 6500 mm |
| Y Axis: 1780 mm |
| Z Axis: 1400 mm |
| A Axis: +100˚/ -100˚ (Swivelable) |
| C Axis: +200° / – 200° (Rotate) |
| Min. Increment: 0.001° |
| Spindle: |
|---|
| Taper Size: HSK 63A |
| Speed Range: 24000 RPM?? |
| Spindle Power: 15 HP |
| Feed rates: |
|---|
| Rapid X Y Z Axis: 30,000 mm per minute |
| Rapid A: 3.240˚ / min |
| Rapid C: 3.240˚ / min |
| Cutting Feed rate: 10,000 mm per minute |
| General: |
|---|
| Air Required: 80 psi 4 scfm |
| Power: 70 kva /480v / 3-Phase |
| Overall Dimensions: ” x ” x ″ High |
| Weight: 22,000 Kg. |
