*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | MORI SEIKI |
| Model: | DURAVERTICAL 5080 |
| Year: | 2011 |
| Condition: | MLS |
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Mori Seiki CNC Control

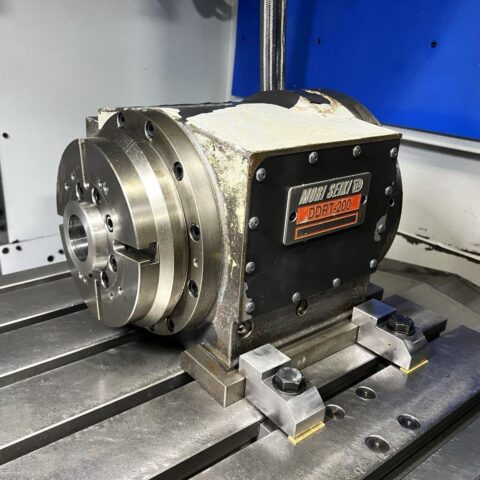

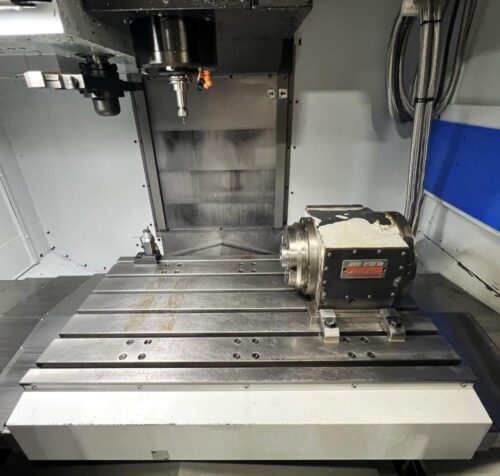

Mori Seiki DDRT-200 4th Axis Rotary Table
Renishaw Probing System
40 Taper 10000 RPM Spindle
Through Spindle Coolant
30 Station Side Mounted Tool Changer
PCMCIA Card Slot
Spindle Orientation
Rigid Tapping
Tool Presetter
Coolant tank
Chip Conveyor
Chip Blaster
Work Light
Specifications:
Travels:
X-Axis: 31.5″
Y-Axis: 20.9″
Z-Axis: 20.1″
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″
Table:
Length: 43.3″
Width: 23.6″
Max Weight on Table: 1760 lbs
Spindle:
Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP
Feed Rate:
Rapid X, Y Axis: 1417 IPM
Rapid Z Axis: 787 IPM
Cutting Feed rate: IPM
Automatic Tool Changer:
40 Taper
Capacity: 30
Max Tool Weight: 17.63 lbs
Max Tool Length: 11.8″
Max Tool Dia: 4.9″
General:
Air Required: 80 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 85″ L X 95″ W X 105″ High
Weight: 14,110 lbs
“No Charges for loading at list Price”
Comes as shown in pictures..
